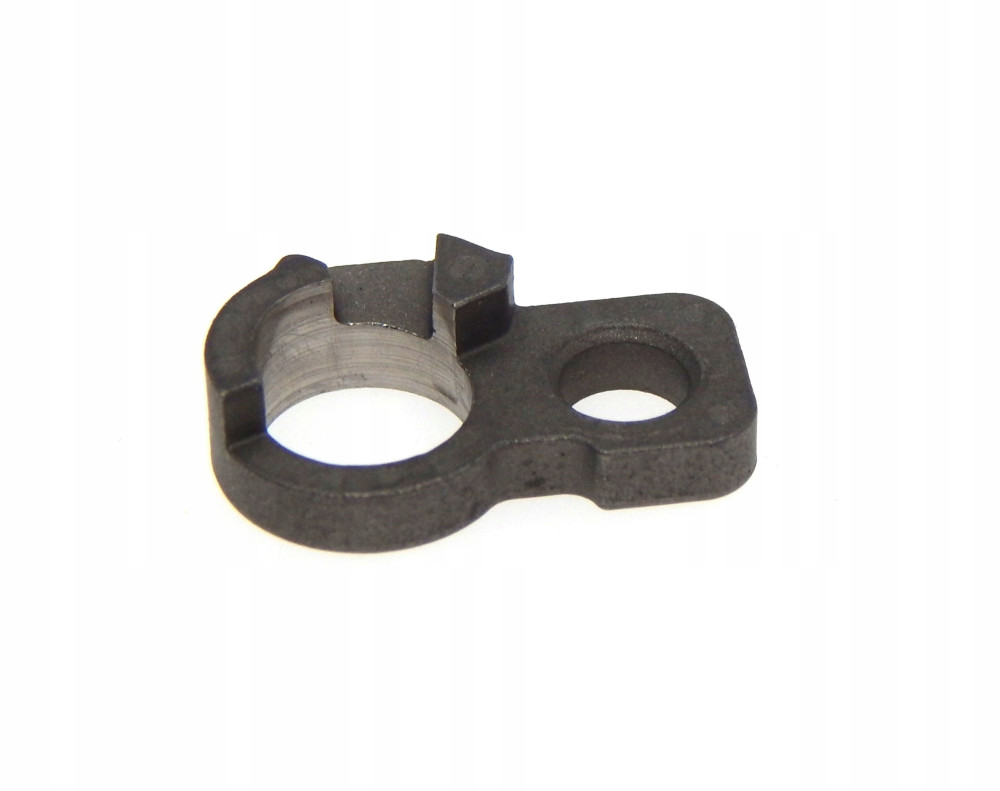

( Cutter B / akumulatorowa wiązarka do zbrojeń )
Spis części od DTR180:
Pozycja, nr katalogowy, opis, ilość:
1; 266130-9; TAPPING SCREW BIND PT 3X16; 4
2; 140B66-1; HOUSING COVER COMPLETE; 1
2; 817A35-8; INDICATION LABEL A; 1
2; 817A42-1; CAUTION LABEL A; 1
2; 817A44-7; CAUTION LABEL B; 1
002-1; 140J78-2; HOUSING COVER COMPLETE; 1
002-1; 817A35-8; INDICATION LABEL A; 1
002-1; 817A42-1; CAUTION LABEL A; 1
002-1; 817A44-7; CAUTION LABEL B; 1
002-2; 140V64-5; HOUSING COVER COMPLETE; 1
002-2; 817A35-8; INDICATION LABEL A; 1
002-2; 817A42-1; CAUTION LABEL A; 1
002-2; 817A44-7; CAUTION LABEL B; 1
3; 266130-9; TAPPING SCREW BIND PT 3X16; 1
4; 310864-7; WIRE GUIDE A; 1
5; 135968-2; SPUR GEAR 30A ASSEMBLY; 1
6; 422247-0; SPONGE SHEET A; 1
7; 911008-8; PAN HEAD SCREW M3X8; 2
8; 458222-0; MOTOR BASE; 1
9; 620913-5; SENSOR CIRCUIT; 1
10; 266007-8; TAPPING SCREW BIND PT 3X10; 1
11; 629346-1; DC MOTOR; 1
12; 266130-9; TAPPING SCREW BIND PT 3X16; 1
13; 941051-3; FLAT WASHER 4; 1
14; 135969-0; RELEASE LEVER ASSY; 1
15; 232443-0; COMPRESSION SPRING 3; 1
16; 256098-7; PIN 5; 1
17; 232442-2; COMPRESSION SPRING 3; 1
18; 458223-8; LOCK LEVER; 1
19; 140A85-1; BRAKE ARM COMPLETE; 1
20; 941152-7; FLAT WASHER 6; 1
21; 232446-4; COMPRESSION SPRING 7; 1
22; 679032-4; SOLENOID; 1
23; 961011-9; STOP RING E-4; 1
24; 327112-7; WIRE GUIDE PIPE; 1
024-1; 140L14-0; WIRE GUIDE PIPE COMPLETE; 1
25; 422249-6; SPONGE SHEET B; 1
26; 232442-2; COMPRESSION SPRING 3; 1
27; 144901-3; MAGNET ARM CCOMPLETE; 1
28; 266130-9; TAPPING SCREW BIND PT 3X16; 1
29; 941051-3; FLAT WASHER 4; 1
30; 211478-4; BALL BEARING 689; 1
31; 183J56-9; HOUSING SET; 1
31; 263005-3; RUBBER PIN 6; 2
31; 252126-6; HEX. LOCK NUT M4-7; 2
31; 931002-4; HEX. NUT M3; 2
31; 817A46-3; CAUTION LABEL C; 1
32; 211136-2; BALL BEARING 6801LLB; 1
33; 144904-7; MAGNET WHEEL COMPLETE; 1
033-1; 140H97-6; MAGNET WHEEL COMPLETE; 1
34; 266130-9; TAPPING SCREW BIND PT 3X16; 2
35; 319665-0; REEL BEARING; 1
035-1; 319822-0; REEL BEARING; 1
36; 231294-8; COMPRESSION SPRING 6; 2
37; 266130-9; TAPPING SCREW BIND PT 3X16; 2
38; 458225-4; REEL BASE; 1
39; 458216-5; REEL COVER; 1
40; 458221-2; REEL BEARING CAM; 1
41; 126743-7; STOPPER ASSEMBLY; 1
42; 265199-0; =+ PAN HEAD SCREW M3X8; 2
43; 911017-7; PAN HEAD SCREW M3X12; 1
44; 310866-3; BEARING RTAINER; 1
45; 140B72-6; MAIN SLEEVE COMPLETE; 1
045-1; 140J49-9; MAIN SLEEVE COMPLETE; 1
46; 620913-5; SENSOR CIRCUIT; 1
47; 266007-8; TAPPING SCREW BIND PT 3X10; 1
48; 126838-6; GEAR ASSEMBLY; 1
49; 619520-9; ROTOR; 1
50; 629343-7; STATOR; 1
51; 652069-6; FLAT HEAD SCREW M3X6; 3
52; 266490-9; TAPPING SCREW PT 2X6; 3
53; 140B68-7; MAIN CONTROLLER COMPLETE; 1
53; 817A37-4; INDICATION LABEL B; 1
54; 183J56-9; HOUSING SET; 1
54; 263005-3; RUBBER PIN 6; 2
54; 252126-6; HEX. LOCK NUT M4-7; 2
54; 931002-4; HEX. NUT M3; 2
54; 817A46-3; CAUTION LABEL C; 1
55; 266130-9; TAPPING SCREW BIND PT 3X16; 11
56; 458219-9; TRIGGER LOCK; 1
57; 234037-7; COMPRESSION SPRING 5; 1
58; 458220-4; TRIGGER; 1
59; 632L94-5; SWITCH UNIT; 1
60; 140B67-9; SWITCH PLATE COMPLETE; 1
60; 817A39-0; INDICATION LABEL C; 1
61; 620924-0; SWITCH CIRCUIT; 1
62; 643860-3; TERMINAL; 1
63; 854L26-4; DTR180 SERIAL NO. LABEL; 1
64; 265633-0; HEX SOCKET HEAD BOLT M3X20; 1
65; 458217-3; CONTACT PLATE COVER; 1
66; 347331-9; CONTACT PLATE; 1
67; 256573-3; PIN 5; 1
68; 144903-9; MAGNET BASE B COMPLETE; 1
69; 911008-8; PAN HEAD SCREW M3X8; 1
70; 265634-8; HEX SOCKET HEAD BOLT M3X8; 1
71; 140C95-0; WIRE GUIDE B COMPLETE; 1
72; 310815-0; CUTTER B; 1
73; 310814-2; CUTTER A; 1
74; 161872-9; LINK ARM A COMPLETE; 1
75; 347328-8; TOP PLATE; 1
76; 347326-2; GUIDE PLATE A; 1
77; 961017-7; STOP RING E-3; 2
78; 347330-1; PULL PLATE; 1
078-1; 347720-8; PULL PLATE; 1
79; 161873-7; LINK ARM B COMPLETE; 1
80; 347370-9; GUIDE ARM A; 1
81; 347329-6; PUSH PLATE; 1
82; 232445-6; TORSION SPRING 7; 1
83; 256400-4; SHOULDER PIN 4; 1
84; 256399-3; SHOULDER PIN 4; 1
85; 347327-0; GUIDE PLATE B; 1
86; 265635-6; H.S.BUTTON HEAD SCREW M3X6; 2
87; 941001-8; FLAT WASHER 3; 1
88; 232444-8; COMPRESSION SPRING 4; 1
89; 256390-1; PIN 3; 1
90; 458226-2; LEAD HOLDER; 1
91; 265635-6; H.S.BUTTON HEAD SCREW M3X6; 2
92; 347333-5; SIDE PLATE R; 1
93; 263040-1; RUBBER PIN 6; 1
94; 232448-0; TORSION SPRING 6; 1
95; 161867-2; CURL GUIDE COMPLETE; 1
96; 256573-3; PIN 5; 1
97; 263040-1; RUBBER PIN 6; 1
98; 347332-7; SIDE PLATE L; 1
99; 265635-6; H.S.BUTTON HEAD SCREW M3X6; 2
100; 854L20-6; DTR180 NAME PLATE; 1
101; 135999-1; DC MOTOR ASSY; 1
102; 135998-3; GUIDE ARM ASS'Y; 1
102-1; 136184-9; GUIDE ARM ASSY; 1
103; 232508-8; COMPRESSION SPRING 10; 1
A01; 251314-2; =+ SCREW M4X12; 1
A02; 346449-3; HOOK; 1
A03; 783208-8; HEX. WRENCH 2.5; 1
A04B; 821552-6; CONNECTOR PLASTIC CASE (TYPE4); 1
A04B; 453974-8; LATCH; 4
A04-1B; 140S63-9; CONNECTOR P.CASE (TYPE4) COMP.; 1
A04-1B; 453974-8; LATCH; 4
A04-1B; 8008X6-2; CAUTION LABEL; 1
A05B; 839735-4; INNER TRAY; 1
A05-1B; 835W33-2; INNER TRAY; 1
A06B; 817D09-7; DTR180ZJ INDICATION LABEL; 1
A07B; 817D10-2; DTR180ZJ PLASTIC CASE LABEL; 2
A09; 162755-6; NYLON BRUSH; 1
