Zastosowanie:
Kosiarka elektryczna do trawy

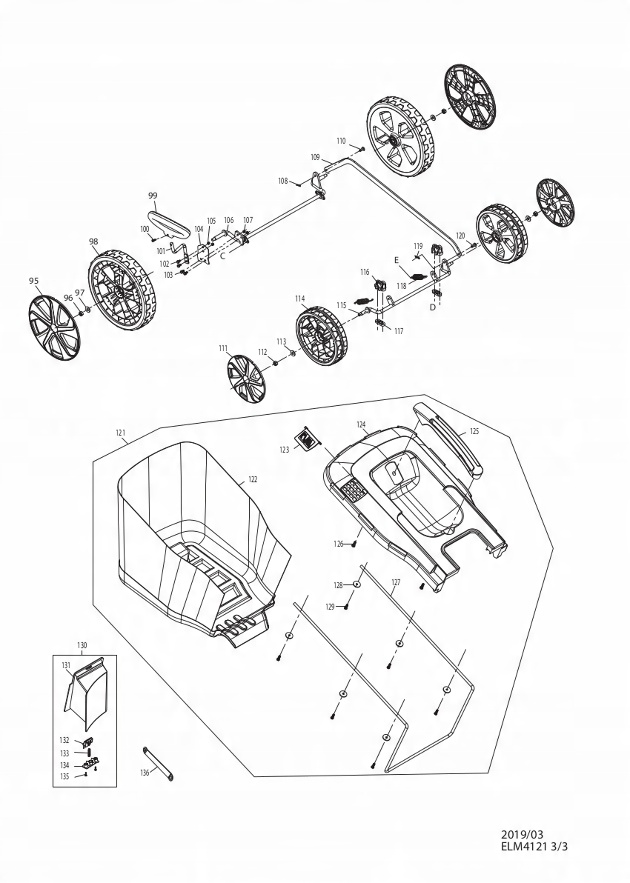

Spis części do ELM4121
Pozycja na schemacie, Nr katalogowy, Opis, Ilość
001 ; YA00000958 UPPER HANDLE BAR ASSY ; 1
002 ; YA00001187 SPONGE GRIP ; 1
003 ; YA00000959 SWITCH LEVER ; 1
004 ; YA00000765 SWITCH BOX RIGHT ; 1
005 ; YA00000766 SWITCH LINK BUTTON ; 1
006 ; YA00000767 COMPRESSION SPRING 16.8 ; 1
007 ; YA00000768 SWITCH LEVER END CAP RIGHT ; 1
008 ; 652024721 SELF DRILLING SCREW 3.5X10 ; 1
009 ; YA00000769 SWITCH TORSION SPRING 21 ; 1
010 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 2
011 ; YA00000780 CORD CLAMP ; 1
012 ; YA00000914 POWER SUPPLY CORD ASSY ; 1
013 ; YA00000781 INDICATOR LENZ ; 1
014 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 2
015 ; YA00000780 CORD CLAMP ; 1
016 ; YA00000773 POWER SUPPLY CORD ASSY (EURO) ; 1
017 ; 652023811 CABLE HANGER ; 1
018 ; YA00000772 SWITCH ; 1
019 ; YA00000782 SWITCH BOX LEFT ; 1
020 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 6
021 ; 652023795 SPRING BOX RIGHT ; 1
022 ; 652024721 SELF DRILLING SCREW 3.5X10 ; 1
023 ; 652023794 SWITCH LEVER END LEFT ; 1
024 ; YA00000737 TORSION SPRING ; 1
025 ; 652023793 SPRING BOX LEFT ; 1
026 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 1
027 ; YA00000785 SELF TAPPING SCREW ST4X25 ; 1
028 ; YA00000921 CABLE CLIP ; 1
029 ; YA00000960 SELF TAPPING SCREW ST3X12 ; 4
030 ; YA00000961 ANGLE ADJUSTMENT JOINT UPPER ; 2
031 ; YA00000975 TENSI0N LEVER ASSY ; 2
032 ; YA00000976 CONICAL SPRING ; 2
033 ; YA00000977 ANGLE ADJUSTMENT JOINT LOWER ; 2
034 ; YA00000960 SELF TAPPING SCREW ST3X12 ; 4
035 ; YA00000802 HEX.FRANGE CAP NUT M6 ; 2
036-1 ; YA00000974 LOWER HANDLE ASSEMBLY ; 1
037 ; YA00000970 CABLE GUIDE RING ; 1
038 ; YA00000971 RUBBER SHEET ; 1
039 ; YA00000971 RUBBER SHEET ; 1
040 ; YA00000972 CABLE GUIDE CLAMP ; 1
041 ; YA00000873 SELF TAPPING SCREW ST4X12 ; 1
042 ; YA00000973 SELF TAPPING SCREW ST3X16 ; 1
044 ; YA00000983 SQUARE NECKED BOLT M8X40 ; 2
045-1 ; YA00000996 RIGHT HANDLE BRACKET ; 1
046 ; YA00000803 M8 KNOB ; 2
047-1 ; YA00001001 LEFT HANDLE BRACKET ; 1
048 ; YA00000997 CABLE CLAMP ; 1
049 ; YA00000998 PAN HEAD SCREW M6X8 ; 1
050 ; YA00000995 H.S.TRUSS HEAD SCREW M8X16 ; 4
051 ; YA00001008 AIR INTAKE PLATE RIGHT BULE ; 1
052 ; YA00001010 SPONGE SHEET ; 1
053 ; YA00001006 MOTOR HOOD UPPER BLUE ; 1
054 ; YA00001011 SPONGE SHEET ; 1
055 ; YA00001012 AIR INTAKE PLATE LEFT BULE ; 1
056-1 ; YA00000450 PAN HEAD SCREW M5X14 ; 4
057 ; YA00001174 CABLE TIE ; 1
058 ; YA00001173 HEAT SHRINKABLE TUBE ; 1
059 ; YA00001181 LEAD WIRE SET ; 1
060 ; YA00000928 MOTOR ASSY (230V) ; 1
061 ; YA00000813 SELF TAPPING SCREW ST4X10 ; 4
062 ; YA00000814 CARBON BRUSH 2PICS SET ; 1

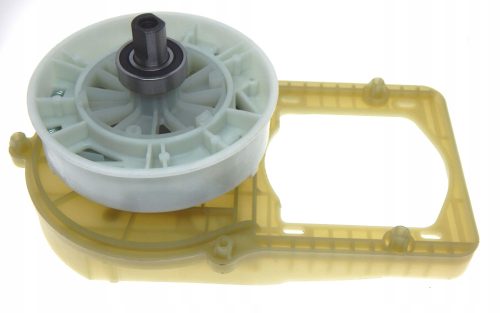

063 ; YA00001183 MOTOR FLAME & PULLEY ASSY ; 1
064 ; YA00000806 SELF TAPPING SCREW ST5X20 ; 4
065 ; YA00001180 LIBED BELT ; 1
066 ; 652023843 NYLON INSERT HEX. LOCK NUT M8 ; 4
067 ; YA00001184 BELT COVER ; 1
068 ; YA00000806 SELF TAPPING SCREW ST5X20 ; 5
069 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 2
070 ; YA00001034 CORD CLAMP ; 1
071 ; YA00000992 REAR FLAP BULE ; 1
072 ; YA00000990 STOP RING E-5 ; 1
073 ; YA00000991 REAR FLAP HINGE ROD ; 1
074 ; YA00000994 REAR FLAP TORSION SPRING 7.7 ; 1
075 ; YA00000999 REAR FLAP MOUNT BULE ; 1
076 ; YA00000794 SELF TAPPING SCREW ST4X14 ; 5
077 ; YA00001002 HEIGHT ADJUSTER STOP PLATE ; 1
078-1 ; YA00000450 PAN HEAD SCREW M5X14 ; 2
079-1 ; YA00000393 NYLON INSERT HEX. LOCK NUT M5 ; 4
080 ; YA00001032 HEX. FLANGE BOLT M5X12 ; 4
081 ; YA00001003 DECK ; 1
082 ;YA00001019 FRONT HOOD BLUE ; 1
083 ; YA00001021 FRONT AXLE COVER ; 1
084 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 8
085 ; YA00000794 SELF TAPPING SCREW ST4X14 ; 2
086 ; YA00001030 SELF TAPPING SCREW ST5X20 ; 4
087 ; YA00001030 SELF TAPPING SCREW ST5X20 ; 6
088 ; YA00001015 BELT COVER RETAINER ; 1
089 ; YA00001016 HEX. SOCKET HEAD BOLT M8X35 ; 4
090 ; YA00001029 SPACER RING 16 ; 1
091 ; YA00000890 BLADE SUPPORT ; 1
092-1 ; YA00000738 BLADE 410 SET ; 1
093 ; YA00000891 CLAMP WASHER 8 ; 1
094 ; YA00000827 HEX. BOLT M8X25 ; 1
095 ; YA00000925 WHEEL CAP 7INCH ; 2
096 ; 652023843 NYLON INSERT HEX. LOCK NUT M8 ; 2
097 ; YA00000420 WASHER ; 2
098 ; YA00000926 WHEEL 8INCH ; 2
099 ; YA00000989 HEIGHT ADJUST GRIP ; 1
100 ; YA00000988 PAN HEAD SCREW M4X12 ; 1
101 ; YA00000987 HEIGHT ADJUST LEVER ; 1
102 ; YA00000407 HEX. FLANGE BOLT M5X16 ; 2
103 ; YA00000407 HEX. FLANGE BOLT M5X16 ; 2
104 ; YA00000986 HEIGHT ADJUST SPRING ; 1
105-1 ; YA00000393 NYLON INSERT HEX. LOCK NUT M5 ; 1
106 ; YA00000985 REAR AXLE ; 1
107-1 ; YA00000393 NYLON INSERT HEX. LOCK NUT M5 ; 2
108 ; YA00000851 R PIN 7 ; 1
109 ; YA00001017 CONNECTING ROD ; 1
110 ; YA00001018 PIN 7 ; 1
111 ; YA00001022 WHEEL CAP 5.2INCH ; 2
112 ; 652023843 NYLON INSERT HEX. LOCK NUT M8 ; 2
113 ; YA00000420 WASHER ; 2
114 ; YA00001023 WHEEL 6INCH ; 2
115-1 ; YA00001028 FRONT AXLE X 1 ; 1
116 ; YA00001026 FRONT AXLE MOUNT UPPER ; 2
117 ; YA00001025 FRONT AXLE MOUNT LOWER ; 2
118 ; YA00001027 HEIGHT ADJUST ASSIST SPRING ; 2
119 ; YA00000851 R PIN 7 ; 1
120 ; YA00001018 PIN 7 ; 1
121 ; YA00000962 GRASS BOX ASSY(MAKITA) ; 1
122 ; YA00000964 GRASS CATCH SIDE CLOSS SET MAK ; 1
123 ; YA00000791 GRASS CATCHER INDICATOR BLUE ; 1
124 ; YA00000966 GRASS CATCHER UPPER BORAD ; 1
125 ; YA00000795 GRIP ; 1
126 ; YA00000794 SELF TAPPING SCREW ST4X14 ; 2
127 ; YA00000968 GRASS CATCHER FRAME ; 1
128 ; YA00000967 WASHER 4 ; 6
129 ; YA00000794 SELF TAPPING SCREW ST4X14 ; 6
130 ; YA00000978 MULCHING PLUG ASSY ; 1
131 ; YA00000979 MULCHING PLUG BOX ; 1
132 ; YA00000980 LATCH HANDLE ; 1
133 ; YA00000981 COMPRESSION SPRING ; 1
134 ; YA00000982 SPRING RETAINER ; 1
135 ; YA00000778 SELF TAPPING SCREW ST4X16 ; 2
136 ; YA00000798 SPANNER 10-13 ; 1
