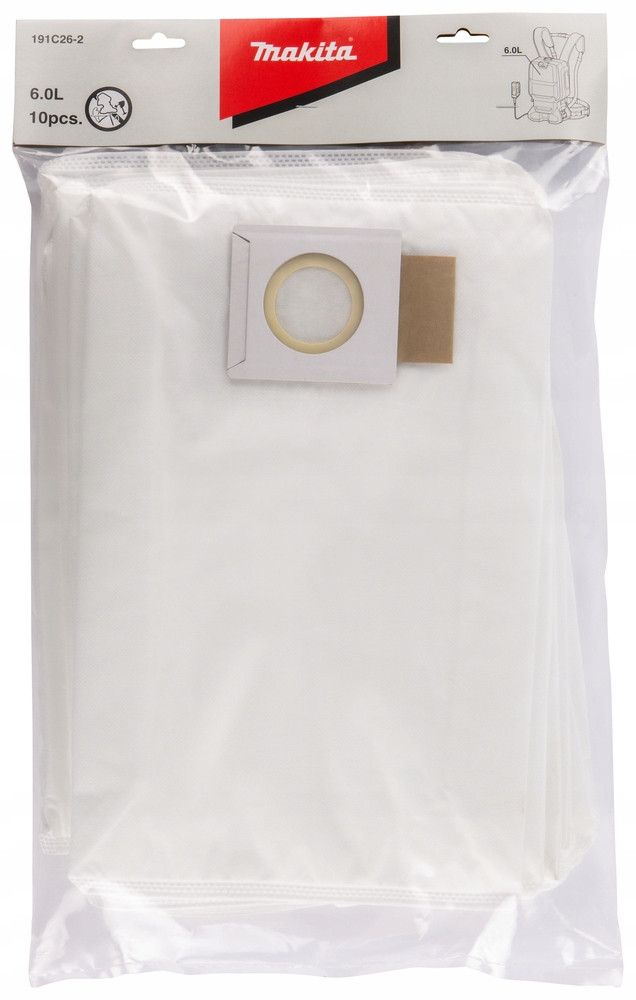

Makita FLIZELINOWY WOREK NA PYŁ 10SZT ODKURZACZA AKUMULATOROWEGO / PLECAKOWEGO DVC660

•
  Producent: Makita



•
  Kod producenta: 191C26-2


•
  Pozycja na schemacie: A03

Zastosowanie:

Makita: DVC660, DVC665

Lista części od DVC660

1 140P97-4 DUST BOX COVER COMPLETE 1

1 C10 422536-3 SEAL A 1

2 127480-6 LATCH ASSEMBLY 1

3 140P91-6 UPPER HOUSING COMPLETE 1

3 C10 422534-7 BAND DAMPER D 1

3 C20 422550-9 BAND DAMPER A 1

4 232389-0 COMPRESSION SPRING 5 1

5 459912-8 STOPPER PLATE 1

6 135771-1 INLET ASS'Y 1

6 D10 INC. 7

7 213655-4 O RING 56 1

8 191D12-9 MAIN FILTER H SET 1

9 232588-4 COMPRESSION SPRING 6 1

10 140P99-0 LEVER 100 COMPLETE 1

11 459913-6 PLATE 1

12 234141-2 COMPRESSION SPRING 12 2

13 232267-4 LEAF SPRING 2

14 687051-6 STRAIN RELIEF 1

15 687123-7 STRAIN RELIEF 1

16 266326-2 TAPPING SCREW 4X18 2

17 422376-9 SUPPORT RING 1

18 161804-6 FAN COVER 1

19 252268-6 HEX. NUT M6 1

20 322407-3 WASHER 6 1

21 241851-4 FAN 94 1

22 313062-2 FLANGE 1

23 266326-2 TAPPING SCREW 4X18 3

24 456736-3 FAN BASE 1

25 619517-8 ROTOR 1

26 629381-9 STATOR 1

27 183D13-1 MOTOR HOUSING SET 1

27 D10 INC. 28

28 183D13-1 MOTOR HOUSING SET 1

28 D10 INC. 27

29 266326-2 TAPPING SCREW 4X18 4

30 687464-1 SUPPORT 1

31 620526-2 CONTROLLER B 1

32 266786-8 + PAN HEAD TAPPING SCREW 2X10 4

33 422370-1 BAND DAMPER C 1

34 424837-5 SUPPORT A 1

35 620C52-9 CONTROLLER 1

36 644809-6 TERMINAL 2

37 140P93-2 LOWER HOUSING COMPLETE 1

37 C10 422535-5 BAND DAMPER E 1

37 C20 422551-7 BAND DAMPER B 1

38 856K43-4 DVC660 NAME PLATE 1

39 266326-2 TAPPING SCREW 4X18 13

40 183K74-3 SWITCH CASE SET 1

40 C10 818F86-4 SWITCH LABEL 1

40 D10 INC. 48

45 687123-7 STRAIN RELIEF 1

46 266326-2 TAPPING SCREW 4X18 2

47 620525-4 SUB CONTROLLER 1

48 183K74-3 SWITCH CASE SET 1

48 C10 818F86-4 SWITCH LABEL 1

48 D10 INC. 40

49 266130-9 TAPPING SCREW BIND PT 3X16 2

50 699136-6 POWER SUPPLY CORD UNIT 1

51 162700-1 HARNESS 1

52 265008-3 + FLAT HEAD SCREW K5 6

A01 199453-9 HOSE COMPLETE 32-1.0 SET 1

A02 166116-2 HOSE BAND 1

A03 191C26-2 FILTER BAG SET 1

A04 197901-2 FLEXIBLE RUBBER NOZZLE SET EU 1

A05 127082-8 NOZZLE ASSEMBLY 1

A06 140G19-0 TELESCOPIC PIPE COMPLETE 1

A07 140G26-3 BENT PIPE COMPLETE 1
